COST EFFECTIVE - ALTERNATIVE TO FILM LAMINATING

AVAILABLE IN 19" - 30" - 40" & 50" WIDTHS

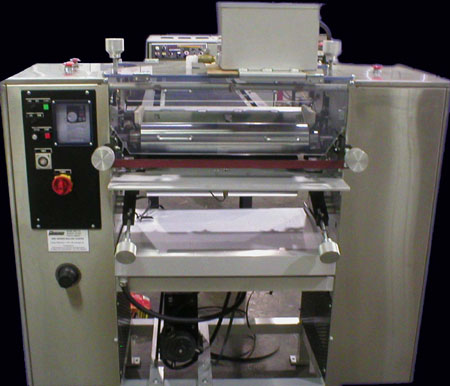

The DRC-Series Roller Coater represents over 29 years of research and development. Our coaters produce high quality UV gloss coating on a variety of printed stocks and has been targeted toward the digital imaging produced market. We have designed easy to use interface with controls for, roller speed, conveyor belt speed, and as well as lamp power settings. A fully integrated modular system with UL approved control panels. This makes our coaters superior to others offered in the marketplace. It is entirely manufactured in our USA manufacturing plant. It is design for quick and easy setup between production runs. Our DRC-series roller coater provides and excellent value added with outstanding performance

........................................................Series Roller Coater Principle of Operation

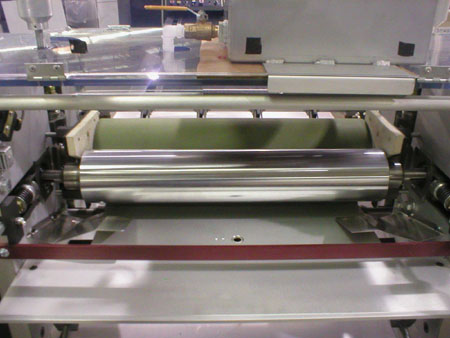

The roller opening is adjustable to take any thickness of stock from 100 lbs book to 1 1/2" thickness (special wide opening coaters are available). The UV coating liquid is dispensed into the reservoir formed by the rubber coating roller and the chrome doctor roller. Felt pads at the roller ends prevent overflow. The UV coating overflow is recirculated by a peristaltic pump from the bottom catch tray and returned to the upper dispensing tank. By adjusting the doctor roller away from the coating roller, the thickness of the coating liquid is regulated. Once adjusted, the stock is fed into the rubber coating roller and final adjustments can be made for precise applications. A scraper blade is necessary to prevent residue on the drive roller from depositing on the bottom of the stock. In addition, the air blast system is required to prevent thinner stock (100 lbs book) from wrapping around rubber coating roller. Roller coater runs at speeds up to 300 ft per minute

UV Coating ............................L9048DB02 .pail or Microcure
Price per pound ..........................$3.15
Price per gallon ............................n/a
Number of sheets in Job ... ............3000 ....K constant...............0.000771605
Sheet length in inches ....... .... ......12.00 ...Dry pound cost..............$3.15
Sheet width in inches ................-..18.00
Dry coating weight/1000 sq. ft. ....... .1.00 ...Number of gallons ............0.5
Percent solids 100%=1 ............-......1.00
Weight per gallon .........................9.00 ...Coating coast for job ......$14.18
Gallons needed to coat 1000 Sheets .....0.20 ...Coating cost per sheet......$0.0047

Coating cost per 12" x 18" sheet ........0.5 cent per sheet

Standard Specs:
· Special high density U.V. resistant application roller.

· Hardened chromed doctor and bottom rollers.

· A/C inverter chain drive system with electronic overload

· Digital variable speed control (300 FPM).

· Precision coating metering adjustments.

· Splash guards enclosures for dust free environments.

· Safety guards with emergency stops.

· 19", 30" & 40" coating width.

· 4 gallon closed loop recirculating ink dispensing system.

· Air knife stock stripping system for light stock 100 lbs. book and above

· Adjustable vibrating jogger stacker

· Adjustable hydraulic lift feed (in manual feed model only).

· Adjustable 200/300 wpi UV lamps

· Speeds up to 4000 iph manual feed (speed is affected by substrate sizes and ink flow).

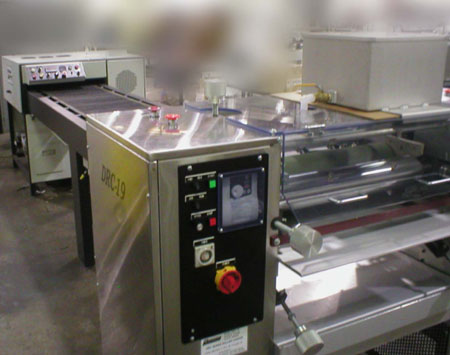

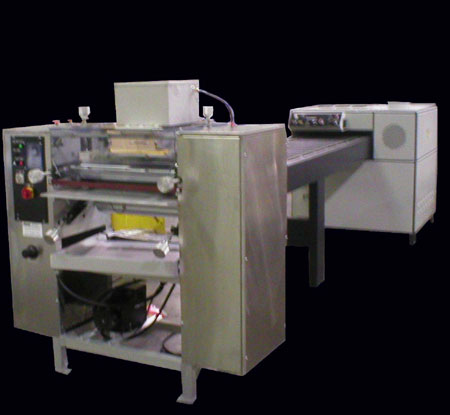

STANDARD COATING LINE SPECIFICATIONS:

· 9' 6" Feed in Conveyor
· 3' 6" U.V. Chamber 2/ (1) air-cooled
· 19", 30" or 40" U.V. Lamp @ 200/300 wpi
· 1' Run out conveyor
· 20", 30" or 40" Wide conveyor belt
· Digital FPM conveyor speed indicator
· Elect: 230 volt, 1-phase, 60 hz
