MD-8 -- Compact, Module Gas Fired Dryer
The MD-8 is a compact, powerful gas dryer designed to cure a wide range of substrates. The MD-8 has many of the same terrific features as the AirJet, with a space saving footprint and a price that fits even the most modest budget. Only the MD-8 offers the patented Air Deflector recycling system which re-circulates heated air through the heat chamber. The MD-8 "air nozzle" method of heat distribution is a feature found only on dryers which cost much more.

MODEL -\-BELT SIZE--- ..... WIDTH.--LENGTH----

4816 ---- 48 INCH ------- ---70" ....-- 16'-

6016 ---- 60 INCH ------- ---82" -.--- 16'

Gas Type: Natural or propane 6-2" WC 3/4" NPT

Electric: 208-230 Volt, 3 Phase 35 Amp

NEED A QUOTE OR ?'S ANSWERED - CALL US ANYTIME !!

1-800-662-6154 / 856-665-6154

FAX# 856-665-0725

EMAIL - INFO@SCREENPRINTSOURCE.COM

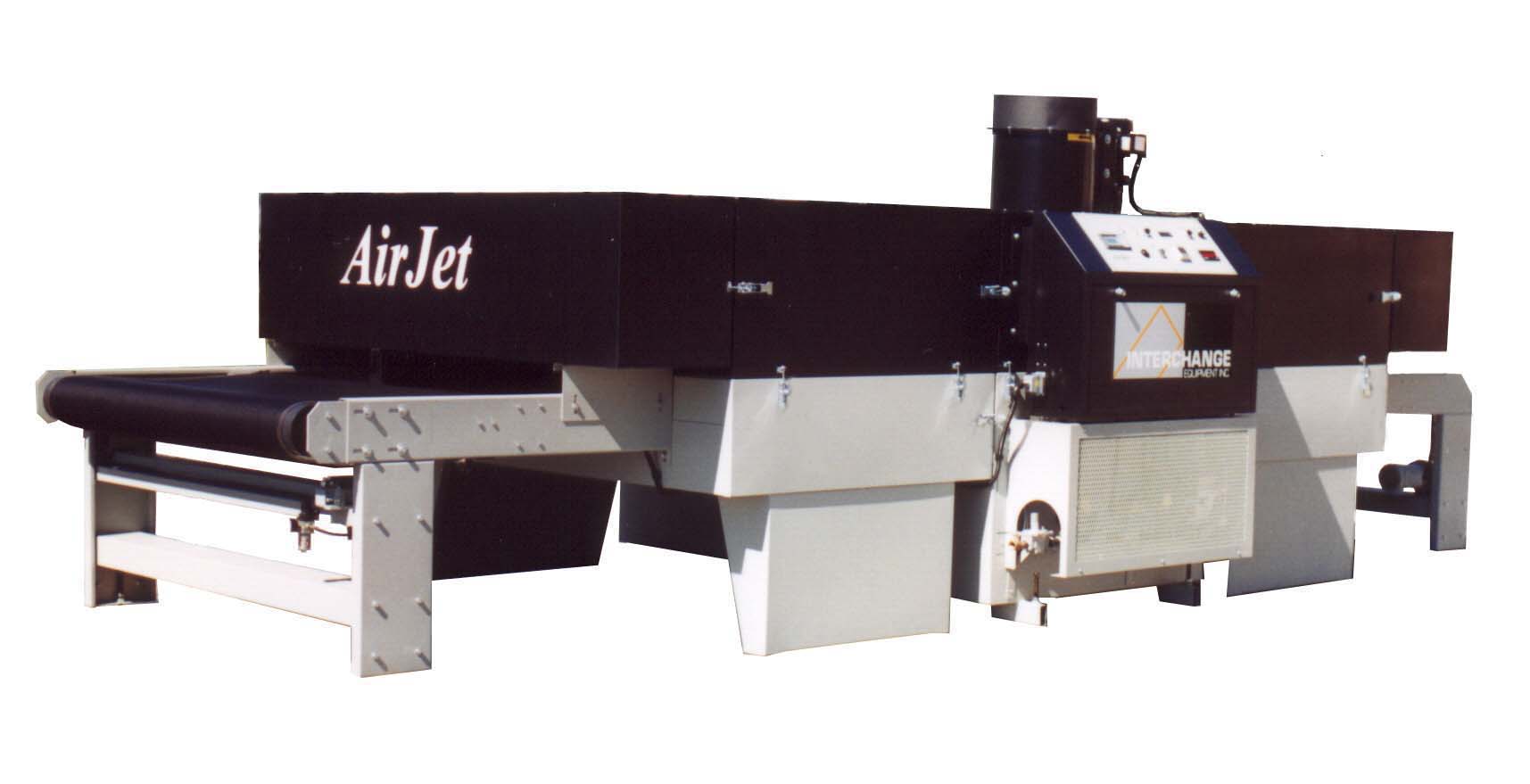

AIR-JET -- Gas & Electric Textile Dryers

The AirJet by Interchange is highly cost-effective, gas-fired dryer designed to efficiently cure a wide range of substrates.

STANDARD FEATURES INCLUDE:

- Available in models for both graphic and textile applications

- Exclusive "Air Deflector" recirculating system, re-uses heated air!

- Powerful 500,000 BTU stainless steel burner o 6000 CFM Blower/3500 CFM Exhaust

- Expandable, modular design

- On board diagnostic system

- 48", 60", 76", 86" sizes available

- Slide out E-Z clean filter drawer o Standard 12' oven section

- ETL approved US. CE approved Europe.

OPTIONS:

-"Optic Sensor" belt tracking system

- Infra-red panel o expansion modules

- Cooling sections o additional conveyor sections

- Hi-Temp feature - up to 450 degrees

- UV curing capability
